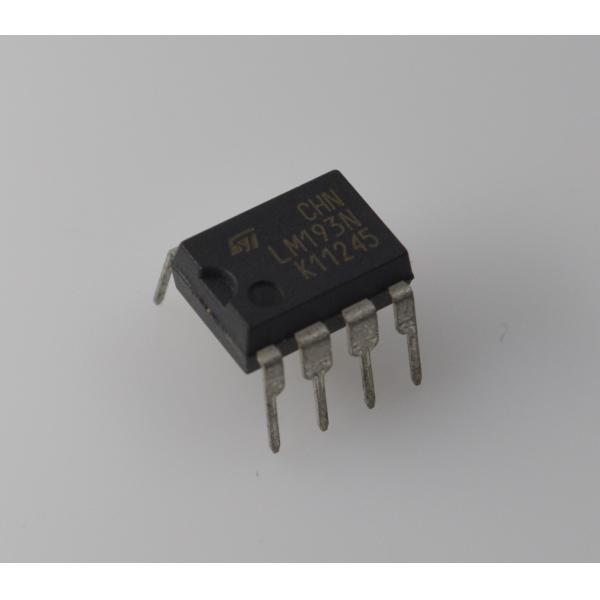

LM193N Dual Differential Comparator Wide 2V-36V Range Low 2mA Current Open-Collector Outputs Fast 1.3andmu;s Response TO-5/DIP Packages - Ideal for Industrial/Auto Control Systems
andnbsp;
Features
■ Wide single supply voltage range or dual supplies : +2V to +36V or andplusmn;1V to andplusmn;18V
■ Very low supply current (0.4mA) independent of supply voltage (1mW/ comparator at +5V)
■ Low input bias current: 25nA typ.
■ Low input offset current: andplusmn;5nA typ.
■ Low input offset voltage: andplusmn;1mV typ.
■ Input common-mode voltage range includes ground
■ Low output saturation voltage: 250mV typ. (Io = 4mA)
■ Differential input voltage range equal to the supply voltage
■ TTL, DTL, ECL, MOS, CMOS compatible outputs
andnbsp;
Application
Industrial Control Systems
Overvoltage/undervoltage protection circuits
Threshold detection and monitoring
Position/speed sensing in motor control
Automotive Electronics
Battery management systems (overcharge/discharge protection)
Headlight/wiper control
Sensor signal processing (e.g., temperature/pressure threshold judgment)
Power Management
Feedback control for DC-DC converters
Power failure detection (e.g., voltage drop monitoring)
Consumer Electronics andamp; Instrumentation
Level detection (e.g., battery level indication)
Waveform shaping (square wave generation)
Analog-to-digital signal interface circuits
Communication Equipment
Pulse-width modulation (PwM) signal processing
Signal edge triggering detection
andnbsp;
Description
These devices consist of two independent low voltage comparators designed specifically to operate from a single supply over a wide range of voltages. Operation from split power supplies is also possible.
These comparators also have a unique characteristic in that the input common-mode voltage range includes ground even though operated from a single power supply voltage.
andnbsp;
INFORMATION
| Category | | andnbsp; |
| Manufacturer | | |
| Series | | |
| Packaging | | |
| Part Status | | |
| Type | Standard (General Purpose) | |
| Number of Elements | | |
| Output Type | Open-Collector, Rail-to-Rail | |
| Voltage - Supply, Single/Dual (andplusmn;) | 2V ~ 36V, andplusmn;1V ~ 18V | |
| Voltage - Input Offset (Max) | | |
| Current - Input Bias (Max) | | |
| Current - Output (Typ) | | |
| Current - Quiescent (Max) | | |
| CMRR, PSRR (Typ) | | |
| Propagation Delay (Max) | | |
| Hysteresis | | |
| Operating Temperature | -55anddeg;C ~ 125anddeg;C | |
| Package / Case | 8-DIP (0.300andquot;, 7.62mm) | |
| Mounting Type | | |
| Supplier Device Package | | |
| Base Product Number | |
