Silver FME Jack Female Crimp Connector Free Hanging For RG174 Cable
andnbsp;
andnbsp;
Introduction :
Series FME are thread coupling coaxial connectors, which have the excellent performance of small size,
easy connect/disconnect, are especially suite for mobile application in vehicles, and the Frequency range
from 0 to 3GHz.Straight connectors are available for cable diameters for approximately 2.6mm to 5.5mm
and also straight and right angle adapters other coaxial series.
andnbsp;
andnbsp;
Key Information:
| Temperature Range | -55~+155anddeg;C(PE Cable-40~+85anddeg;C) |
| Impedance | 50andOmega; |
| Frequency Rangeandnbsp;andnbsp;andnbsp;andnbsp;andnbsp;andnbsp;andnbsp; | DC-3GHz |
| Withstanding Voltage | 1000V r.m.sandnbsp;andnbsp; at sea level |
| Working Voltage | 500Vr.m.sandnbsp;andnbsp; at sea level |
| Insulation Resistanceandnbsp;andnbsp; andnbsp;andnbsp;andnbsp; | andgt;=5000MandOmega; |
| Center conductor retention force | andgt;= 0.57N |
| Durability | andgt;= 500 (cycles) |
| Contact resistance | Center Contactandnbsp;andnbsp; andlt;=10 mandOmega; |
| Outer Contactandnbsp;andnbsp; andlt;= 5 mandOmega; |
| Voltage Standing Wave Ratio | Straightandnbsp;andnbsp;andnbsp;andnbsp;andnbsp;andnbsp;andnbsp;andnbsp; andlt;=1.20 |
| Right angleandnbsp;andnbsp; andlt;=1.25 |
andnbsp;andnbsp;andnbsp;
andnbsp;
andnbsp;
andnbsp;
andnbsp;
andnbsp;
andnbsp;
andnbsp;
andnbsp;
| Key Performance |
| Temperature Range | -65~+165anddeg;C |
| Insulation resistance | andge;5000MandOmega; |
| Dieletric withstanding voltage | 1000v(rms) |
| Characteristic impedance | 50andOmega; |
| Frequency range | 0-3GHz |
| Contact resistance | Center conductorandle; 10mandOmega; |
| | Outer conductorandle; 5mandOmega; |
| VSWR | andle;1.22 |
| Durability | 500(cycles) |
| Materials andamp;Plating |
| Body | Brass, gold plating |
| Male center contacts | Brass, gold plating |
| Female center contacts | Beryllium or copper, gold plating |
| Insulators | PTFE |
| Gaskets | Sillion rubber |
| Crimp ferrule | Copper alloy, gold or nickel plating |
| andnbsp; | andnbsp; | andnbsp; |
andnbsp;
andnbsp;
andnbsp;
Advantage:andnbsp;
andnbsp;FMEandnbsp;(For Mobile Equipment) is a miniature 50andOmega;andnbsp;RF connectorandnbsp;series offering excellent performance fromandnbsp;DCandnbsp;to 2.0andnbsp;GHzandnbsp;used primarily withandnbsp;RG-58andnbsp;or equivalent coaxial cables employed in mobile applications and installations.
andnbsp; andnbsp; The FMEandnbsp;femaleandnbsp;is designed to allow cables it has been installed on to be snaked through the often tight access holes or spaces of a vehicle to the desired equipment location(s) where an FME male adapter to the required equipment connector series is fitted to the female cable connector.
andnbsp; andnbsp; There is an extensive array of FME inter-series adapters available and a male cable connector is also offered for both RG-58 and RG-174 type cables to facilitate extensions, splices or transitions.
andnbsp;
Application:
1. andnbsp;We are able to supply various types of connectors according to clientsandrsquo; requirements
2. andnbsp;All materials are ROHS approvedandnbsp;
3. andnbsp;OEM service offered
4. andnbsp;Competitive price
andnbsp;
andnbsp;
Ordering information:
andnbsp;
| TOP-FME-1 | FME Straight Male for RG174 |
| TOP-FME-2 | FME Straight Female for RG174 |
| TOP-FME-3 | FME Straight Male(bulkhead) for RG174 |
andnbsp;
andnbsp;
andnbsp;

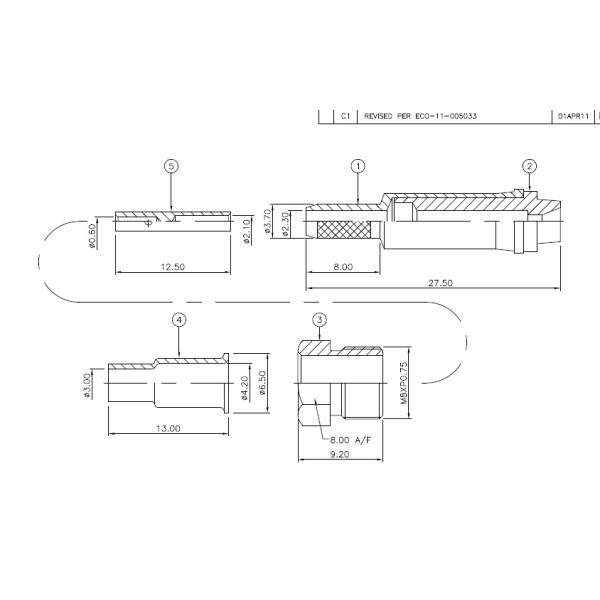

Drawing:
andnbsp;
andnbsp;
andnbsp;
andnbsp;
Our main RF coaxial connector :
All series connectors:
SMA,SMB,SMC,MCX,MMCX,N,FME,TNC,
BNC,TNC,FAKRA,GT5,U.FL, GSC,IPEX etc
andnbsp;
We use only the best quality andnbsp;components to ensure the standard of our product range is of the highest caliber.All products we sold out are strictly selected and tested by our QC department.
Product Tags:
|
|
Silver FME Jack Female Crimp Connector Free Hanging For RG174 Cable Images
|
